MORIMOTO XBG LED DRL Grille For 2014-2024 Toyota 4Runner
Product Description
WHAT’S INCLUDED:
Grille : 1x Mesh Grille Insert
Fascia Cover : 1x Fascia Cover
Light Pods : 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods
Hardware : 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit
Wiring : 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H)
FEATURES & BENEFITS:
High Vis Backlighting: Integrated dual-intensity amber backlighting for DRL and marker light modes.
Direct Swap: Carefully designed to replace the stock grille with zero modifications.
Plug and Play: Included wiring makes for a very easy installation on all trim levels.
Useful Output: The four included pods in Combo and SAE Wide mode provide useful off-road visibility with a clean look.
Shaved Fascia Cover: Unique to this grille setup, the fascia cover has no emblem dimples for a super-clean look.
WARRANTY INFORMATION
This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer like us.
COMPATIBILITY:
Toyota 4Runner : 2014-2024* (all trim levels: SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off Road, TRD Pro)
Replaces Toyota Part Numbers : PZ323-35056, PZ327-35053, 52701-35010, 53101-35080
COMPLIANCE:
Designed to comply with DOT, SAE, and FMVSS108 standards.
TECHNICAL SPECIFICATIONS:
Intensity : 17,000 Cd (170lux @ 10m)
Peak Luminosity (raw) : 3,600lm
Current : 4.0A @ 13.5V DC
Color : 2400K
Light Source (per pod) : 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight)
Material : ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powdercoated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powdercoated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware

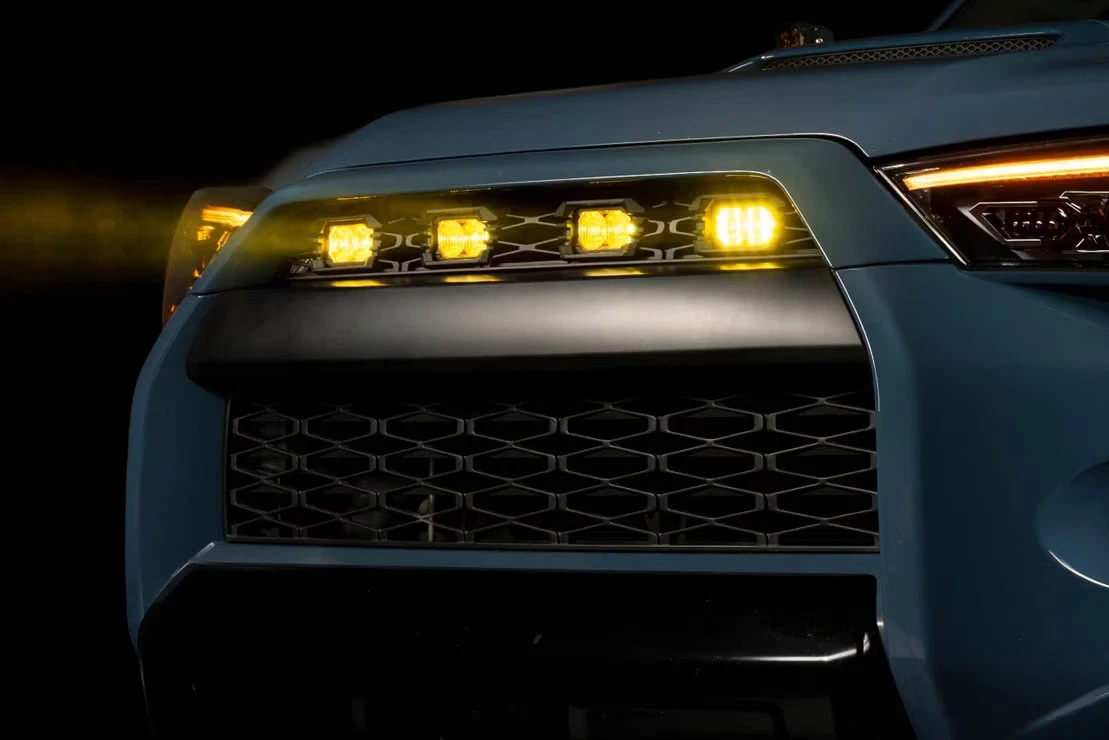

High Vis Backlighting: Some "raptor" lights can cheapen the look of your 4Runner, but not with this grille replacement! This mesh grille replacement is packed with four 2Banger pods equipped with dual intensity amber backlighting. During the day, the CREE XP-E2 LEDs provide an intense backlight flooding inside the pod, and with the included wiring, this backlight dims via the parking light circuit to act as glare-free nighttime marker lights.
Direct Swap: Morimoto engineers relentlessly designed the grille insert to be a 1:1 swap of the stock grille for a simple remove-and-replace process. The same durable material is used. The factory grille hardware is carried over. For 2020-2024 model years, there is an included center support bracket and spacers to ensure everything lines up just like stock (the mandated radar required some minor changes behind the scenes).
Plug and Play: The fifth-gen 4Runner had three different headlight types, and the included wiring is compatible with all three versions. The grille backlighting is powered by the included fuse tap and is also plug and play with the popular new XB Evo headlights. The provided harness intercepts the headlight's parking light connection with OE grade connections for a quick setup. The main beam for the pods can be triggered by either the included push-button switch or via an upfitter switch setup. Review the installation guide for more information.
Useful Output: A combination of yellow SAE Wide and Combo pods provide a helpful distribution of light output on the trails. The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The oval hot spot and spread at beam center has been perfectly tuned to produce an ideal flood beam. The SAE Wide beam optics feature dual axis control: 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper cutoff line and vertical gradient easily pass the latest SAE F regulation for safe and legal use as a fog light on public roads. The grille allows for 6 degrees +/- for fine tuning the aim.
Shaved Fascia Cover: For the maximum in cleanliness, no emblem is required. There are no emblem-centering dimples like both the OEM part and all other aftermarket options. If you do want to add the OE Toyota emblem, using the standard double-sided foam tape is all that's needed. The cover is molded ABS plastic and is painted with a UV-stable matte black finish.
