The Factory Caliper Color Codes

Factory Caliper Color Availability by C8 Model & Model Year

Each C8 model gets its own year-by-year matrix. A check mark means that factory caliper color was available for that model year. This format also makes the J6E yellow transition easy to see: Chevrolet kept the same J6E RPO while the published color name changed from Yellow to Edge Yellow and then Velocity Yellow.

Stingray

J6A Black is the standard Stingray caliper finish in the guide data. Stingray brake hardware is separate from color: JL9 is the standard brake system and J55 identifies the Z51 performance brakes.

Z06

Z06 brake restrictions matter. J6D is tied to J57 carbon-ceramic brakes; J6L requires J57. For MY2026, J6B Blue also requires J57. Z07 includes J57. The 2027 guide data lists Blue as a general option while J6D/J6L remain tied to J57.

E-Ray

J6D Dark Gray Metallic is the standard E-Ray caliper finish in the guide data. J57 carbon-ceramic brakes are standard on E-Ray, so changing caliper color does not change the underlying brake system.

ZR1

J6D Dark Gray Metallic is the standard ZR1 finish in the guide data. J58 is the standard ZR1 carbon-ceramic system. Beginning MY2026, ZTK uses J59 Alcon 10-piston front / 6-piston rear brakes. For MY2027, J6O Bronze is listed as ZTK-only.

ZR1X

ZR1X uses J59 Alcon 10-piston front / 6-piston rear carbon-ceramic brakes as standard equipment in the guide data. J6D Dark Gray Metallic is the standard caliper finish.

Grand Sport

The C8 Grand Sport begins with MY2027. JX6 low-dust 6-piston front / 4-piston rear brakes are standard. Z52 Sport adds J56 performance iron brakes; Z52 Track adds J57 carbon ceramic with J6D. J6D is J57-only and J6L requires J57.

Grand Sport X

J57 carbon-ceramic brakes are standard on the 2027 Grand Sport X in the guide data. J6D Dark Gray Metallic is the standard caliper finish.

GM can impose mid-year ordering constraints even when a color appears in the order guide. The individual Corvette's QR/RPO data remains the final authority for a specific car.

J6E Yellow Timeline — Same RPO, Three Factory Names

The yellow story deserves its own timeline because “J6E” alone does not identify the exact factory finish.

Factory Color Gallery

These standardized images are meant as visual references. The RPO code remains the authority; lighting, camera white balance, wheel finish and brake dust can all change how a caliper photographs.

J6A Black
ACS J6A

J6B Blue
ACS J6B

J6D Dark Gray Metallic
ACS J6D

J6L Orange
ACS J6L

J6O Bronze
ACS J6O

J6E Edge Yellow
ACS J6EY

J6E Velocity Yellow
ACS J6EV

Bright Red vs. Edge Red: J6F vs. J6N

The C8 has two different factory red caliper colors. J6F is Bright Red. J6N is Edge Red. They are separate factory options, and they are not interchangeable names for the same finish.

Bright Red is the more vivid, traditional Corvette red. Edge Red is deeper and more subdued. On a real caliper, cast and machined surfaces can reflect light differently, so one photo can make the same finish look lighter or darker than it does in person. That is exactly why ACS recommends using the RPO code instead of trying to identify the red by eye.

J6N Edge Red vs. J6F Bright Red — use the vehicle's RPO code to identify the finish, not the photograph alone.

Edge Yellow vs. Velocity Yellow: The J6E Trap

J6E is the C8 caliper code that creates the most confusion because the RPO stayed the same while Chevrolet's published name changed. The 2020 GM brochure calls J6E simply Yellow-painted. The 2021 GM brochure changes the name to Edge Yellow-painted, and GM continues using Edge Yellow through MY2024. For MY2025 Chevrolet explicitly changed J6E from Edge Yellow to Velocity Yellow; the 2026 and 2027 order guides continue to list J6E as Velocity Yellow-painted.

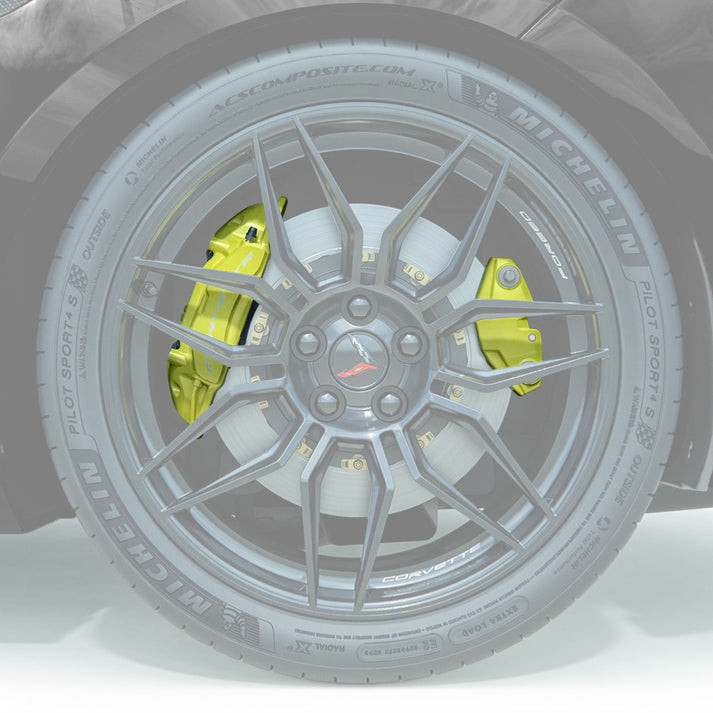

J6E Edge Yellow
GM MY2021–2024 nomenclature; ACS J6EY.

J6E Velocity Yellow
Use ACS J6EV for the MY2025+ Velocity Yellow finish.

Same RPO, different finish. J6E alone is not enough — model year is part of the identification.

How to Scan the Driver-Door QR Code

Open the driver's door and locate the certification label in the door-jamb area. Scan the QR code with a phone. The resulting data contains vehicle information followed by the factory RPO codes.

1. Scan the QR code on the driver's door-jamb certification label.
2. Find the J6-series code: J6A, J6B, J6D, J6E, J6F, J6L, J6N or J6O.
3. If you see J6E, note the model year as well.
4. Do not confuse the caliper-color code with the brake-system code.

Color Code vs. Brake System: Two Different Questions

A C8's caliper color and brake hardware are separate pieces of information. This distinction is critical. A Bright Red Stingray is not automatically a Z51. A red Z06 does not tell you whether the car has iron or carbon-ceramic rotors.

Stingray: standard brakes vs. Z51

On the Stingray, J55 identifies the Z51 performance brake system. The caliper color can still be Black, Bright Red, Edge Red or the appropriate J6E yellow. So “I have red brakes” tells us the finish — not whether the car is a Z51.

Z06: J56 and J57

The Z06 standard performance brake system uses six-piston front and four-piston rear calipers. J57 identifies the carbon-ceramic system and is included with the Z07 Performance Package. On applicable order guides, J6D Dark Gray Metallic is tied to J57, and J6L Orange requires J57.

E-Ray: carbon ceramic is standard

The E-Ray makes a great trivia question because carbon-ceramic brakes are standard. Changing the caliper from Dark Gray Metallic to Bright Red, Edge Red, Orange or yellow changes the finish — it does not remove the carbon-ceramic brake system.

2027 Grand Sport: JX6, J56 and J57

The 2027 Grand Sport introduces a three-level brake story. The base car uses JX6 touring/low-dust 6-piston front and 4-piston rear brakes with J6A Black calipers. Z52 Sport adds the J56 high-performance iron brake package, while Z52 Track adds J57 carbon-ceramic brakes with J6D Dark Gray Metallic calipers. J6L Orange requires J57. The 2027 Grand Sport X uses J57 carbon ceramic as standard equipment.

ZR1 / ZR1X: J58 vs. J59

ZR1 uses J58 ZR1-specific carbon-ceramic brakes as standard. Beginning with MY2026, the available ZTK package moves ZR1 to J59: an Alcon carbon-ceramic system with 10-piston front and 6-piston rear calipers. ZR1X uses J59 as standard equipment. The brake-system RPO and the J6 caliper-color RPO are still separate pieces of the build.

ACS Body-Color Match Is a Different Category

A body-color-matched ACS caliper cover is not the same thing as a factory J6 caliper color. For example, a G26 Sebring Orange Corvette can use an ACS cover matched to the exterior body color. That should be identified as a body-color-match application — not confused with the factory J6L Orange caliper option.

G26 Sebring Orange — ACS Body Color Match
This is an ACS body-color-match application and should not be confused with the factory J6L Orange caliper option.

Why the Stingray and Widebody ACS Covers Are Different

The Z06/widebody caliper casting is different from the Stingray casting, so ACS could not simply scale the Stingray cover. The widebody version required a new cover and a different attachment system. A useful visual clue is the pair of horizontal lines on the face of the widebody/Z06-style caliper.

The updated widebody installation method requires wheel removal, while the Stingray installation has its own dedicated procedure.
